In modern industrial applications, achieving high accuracy and reliability in motion control systems is paramount. One critical component enabling this precision is the precision magnetic absolute rotary encoder. Unlike traditional incremental encoders, absolute rotary encoders provide exact positional data without relying on reference points, making them ideal for advanced automation systems. In this blog post, as a high performance industrial encoder manufacturing factory, ENX Enxiao will share the features of precision magnetic absolute rotary encoder, its applications, etc.
Understanding Magnetic Absolute Rotary Encoder

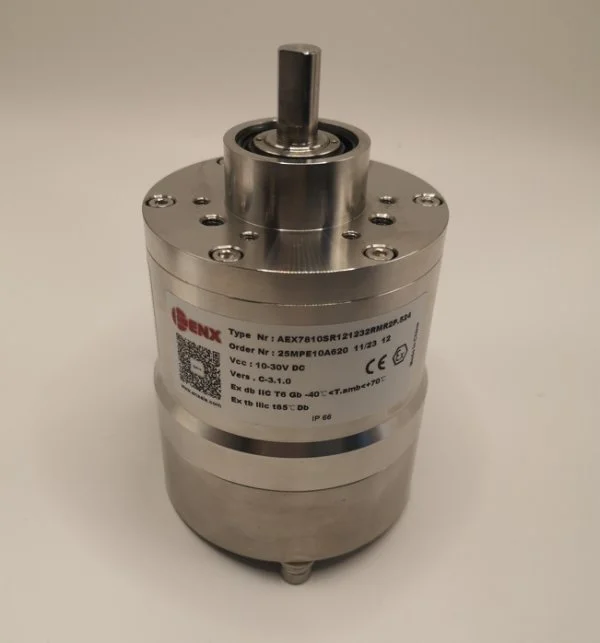

A precision magnetic absolute rotary encoder is a type of sensor that converts the angular position of a rotating shaft into an absolute digital signal. Magnetic encoders use a magnetic field, often generated by a magnet attached to the rotating part, to measure angular displacement. The precision aspect ensures minimal error, even in high-speed or harsh industrial environments.
Unlike optical encoders, which are sensitive to dust, dirt, and mechanical misalignment, magnetic absolute rotary encoders offer higher durability. This makes them indispensable in industries such as robotics, CNC machining, automotive manufacturing, and aerospace systems, where precision and reliability are non-negotiable.
Key Features of Precision Magnetic Absolute Rotary Encoder
Precision magnetic absolute rotary encoders possess several unique features that distinguish them from other position-sensing technologies:
-
Absolute Position Measurement – Unlike incremental encoders, these devices provide a unique digital code for every angle of rotation, ensuring accurate position readout even after power loss.
-
Magnetic Field Sensing – Utilizing Hall effect or magnetoresistive sensors, these encoders maintain high reliability under extreme conditions, such as vibration, dust, and temperature fluctuations.
High Resolution and Accuracy – Advanced magnetic encoders achieve resolutions up to 16 or 18 bits, corresponding to sub-degree angular precision, which is critical for robotics and CNC applications.
-
Compact and Rugged Design – Many precision magnetic absolute rotary encoders are designed with robust housings, suitable for integration into compact mechanical assemblies without compromising durability.
Applications of Magnetic Absolute Rotary Encoder
The versatility of precision magnetic absolute rotary encoders allows them to be deployed across a wide range of industrial sectors:
-
Robotics – Accurate joint positioning is vital for robotic arms and automated machinery, making high-resolution absolute encoders essential.
-
CNC Machinery – Precision machining requires continuous feedback of spindle position, which magnetic absolute encoders reliably provide.
-
Automotive Industry – Electric power steering systems, throttle control, and other critical automotive components benefit from the durability and precision of magnetic encoders.
-
Aerospace and Defense – Harsh operating environments demand encoders that maintain accuracy under extreme vibration, temperature, and pressure conditions.
Why Choose Magnetic Absolute Rotary Encoder Over Other Types
While optical and incremental encoders are common, precision magnetic absolute rotary encoders offer several advantages:
-
Non-Contact Operation – Magnetic sensing eliminates physical contact, reducing wear and extending service life.
-
Environmental Robustness – These encoders resist dust, moisture, and vibration better than optical systems, making them suitable for outdoor and industrial environments.
-
Power Loss Resilience – Absolute encoding ensures positional information is retained even when the system experiences a power outage, preventing costly recalibration.
-
Flexibility in Installation – Compact form factors and varied shaft configurations allow easy integration into complex mechanical systems.
Integration and Communication Protocols
Modern precision magnetic absolute rotary encoders support multiple communication interfaces, enabling seamless integration with industrial control systems:
-
SSI (Synchronous Serial Interface) – Provides high-speed, noise-resistant communication for motion controllers.
-
CANopen and DeviceNet – Common in automotive and industrial automation networks for real-time data exchange.
-
Analog and PWM Outputs – Ideal for simpler applications requiring direct feedback to control systems.
By supporting diverse protocols, these encoders offer flexibility in both retrofitting existing systems and designing new automated solutions.
Innovations Driving Precision Magnetic Absolute Rotary Encoder Technology
Recent advancements in magnetic sensing technology are further enhancing precision magnetic absolute rotary encoders:
-
Miniaturization – Compact designs enable integration into small-scale robotics and portable devices.
-
Higher Resolution Sensors – Improved magnetoresistive sensors increase angular resolution without enlarging the encoder footprint.
-
Enhanced Temperature Tolerance – Advanced materials and calibration techniques allow stable operation in extreme thermal environments.
-
Smart Encoders with Diagnostics – Some modern encoders provide self-monitoring features, alerting operators to misalignment, wear, or magnetic interference.
These innovations ensure that magnetic absolute rotary encoders remain at the forefront of precision motion control solutions.
Conclusion
The precision magnetic absolute rotary encoder represents a vital advancement in motion sensing technology. Its combination of absolute position measurement, environmental robustness, high accuracy, and versatile integration makes it indispensable across industries demanding precise, reliable motion control. From robotics and CNC machinery to automotive and aerospace systems, magnetic absolute encoders empower engineers to achieve unparalleled precision and operational efficiency.
